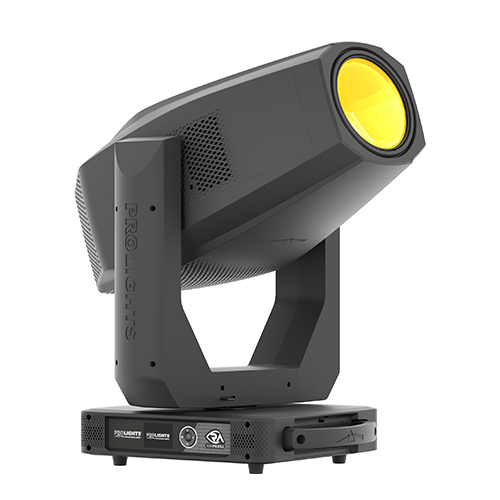

Prolights RA3000PROFILE

1000W high-precision LED moving profile, 6°-50° zoom, CMY,CTO, 4f prism, 57kg

0.00 AED 0.00 AED

Product Description

Ra 3000Profile combines solid-state technology in every single detail and it has been specifically engineered to be not only a high-quality bright light but also silent. Ra 3000Profile is able to provide a real 18'576 lumen output with unprecedented beam evenness. The 6.000 K LED engine has been custom designed to make the Ra 3000Profile hit a CRI of 90, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.The Ra 3000Profile's CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the Ra 3000Profile to blend in with traditional sources. Packed with a full feature set, composed of a gobo wheel, animation wheel, iris, prism and dual linear frost. High-precision 4 blade shuttering system can be overlaid to provide endless combinations. The 19 element optics of the Ra 3000Profile are precision engineered for a perfect zoom, ideal edges and maximum efficiency. The Ra 3000Profile is silent, bright, flexible and precise.

  • 1.000W LED engine with 6.000 K CT featuring high CRI, TLCI, R9 and TM30.
  • 18'576 lumen fixture output with flat-field projection and silent operation.
  • Equipped with both adjustable framing shutters and an animation wheel.
  • Ra 3000Profile combines solid-state technology in every single detail and it has been specifically engineered to be not only a high-quality bright light but also silent. Ra 3000Profile is able to provide a real 18'576 lumen output with unprecedented beam evenness. The 6.000 K LED engine has been custom designed to make the Ra 3000Profile hit a CRI of 90, TLCI of 92, high R9 and TM30 making all skin tones and colours come to life on stage or in front of a camera.The Ra 3000Profile's CMY system delivers beautiful pastels, stunning saturated colours, powerful primaries, one colour wheel provides split colours, and linear CTO allows the Ra 3000Profile to blend in with traditional sources. Packed with a full feature set, composed of a gobo wheel, animation wheel, iris, prism and dual linear frost. High-precision 4 blade shuttering system can be overlaid to provide endless combinations. The 19 element optics of the Ra 3000Profile are precision engineered for a perfect zoom, ideal edges and maximum efficiency. The Ra 3000Profile is silent, bright, flexible and precise.

    Features:
    1.000W LED engine with 6.000 K CT featuring high CRI, TLCI, R9 and TM30.
    18'576 lumen fixture output with flat-field projection and silent operation.
    Equipped with both adjustable framing shutters and an animation wheel.

    LIGHT SOURCE
    • Source:
      1.000
      W
      White LED
    • Source CCT:
      6.000
      K
    • Luminous flux:
      18'576
    • Lux:
      (6°) 68'027 lx (50°) 1'543
      lx
      @5 m
    • CRI:
      > 93
    • R9:
      70
    • TLCI:
      94
    • TM30 Rf:
      89
    • TM30 Rg:
      97
    • Source life expectancy:
      > 30.000 hrs (L70B10 @Ta 25° C / 77° F)
    OPTICS
    • Zoom range:
      6° - 50
      °
      motorised linear zoom
    • Lens diameter:
      180
      mm
    COLOUR SYSTEM
    • Colour mixing:
      linear CMY
    • CCT:
      linear CTO correction 2.700 K ~ 6.000 K
    • Colour wheel:
      6
      colour filters
    DYNAMIC EFFECTS
    • Shutter system:
      4
      single blades: + / - 35°, complete system: + / - 45°
    • Animation wheel:
      animation wheel with CW and CCW rotation
    • FX generator:
      shutter macros with adjustable speed
    • Circular prism:
      4
      -f
      with bi-directional rotation, indexing
    • Frost:
      dual frost filter system, 1° soft-edge frost gobo, 5° frost wash, with
      linear 0-100%
    • Iris:
      5 - 100
      %
      motorised iris
    GOBOS
    • Rotating gobos:
      6
      rotating gobos + open, interchangeable, indexing
    • Gobo size:
      outer: 31,6 mm - image: 26 mm - thickness: 1,1 mm
    CONTROL
    • Supported Protocols:
      DMX512, RDM, Art-Net, sACN, W-DMX
    • DMX channels:
      38 / 39 / 40 / 41
      ch
    • RDM:
      for remote addressing and parameter configuration
    • Display:
      Graphic User Interface
    MOVEMENT
    • Pan:
      540
      °
      - 16-bit resolution
    • Tilt:
      270
      °
      - 16-bit resolution
    • Position feedback:
      automatic repositioning after external movement
    • Pan / tilt lock:
      for transport and maintenance
    ELECTRONICS
    • Dimmer:
      linear 0 - 100% electronic dimmer
    • Strobe / shutter:
      1 - 30
      Hz, electronic
    • Display battery:
      included, self-charging battery backup
    • Firmware upgrade:
      via DMX with UPBOXPRO/UPBOX1 (not included)
    CONNECTIONS
    • Power connection:
      Neutrik powerCON TRUE1 IN connector
    • Signal connection:
      Amphenol XLR 3p + 5p IN/OUT connectors
    • Wireless Connection:
      integrated W-DMX receiver
    • Data connection:
      Art-Net
      RJ45 IN/OUT
    ELECTRICAL
    • Mains power supply:
      100-240V - 50/60Hz
    • Max power consumption (230V):
      1.350
      W
    • Max power consumption (120V):
      1.370
      W
    • Power factor:
      (120 W) 1,0 - (230 W) 0,98
    PHYSICAL
    • IP rating:
      IP20
    • Cooling:
      heat pipe with low-noise fan
    • Finish:
      black
    • Operating temperature:
      Ta
      -10 to +45 °C (+14 to +113 °F)
    • Dimensions (WxHxD):
      535x913x403
      mm
    • Weight:
      57
      kg
    INSTALLATION
    • Suspension and fixing:
      fast quick lock Omega bracket
    CERTIFICATIONS / REPORTS
    • Compliance:
      CE, UKCA, RCM
