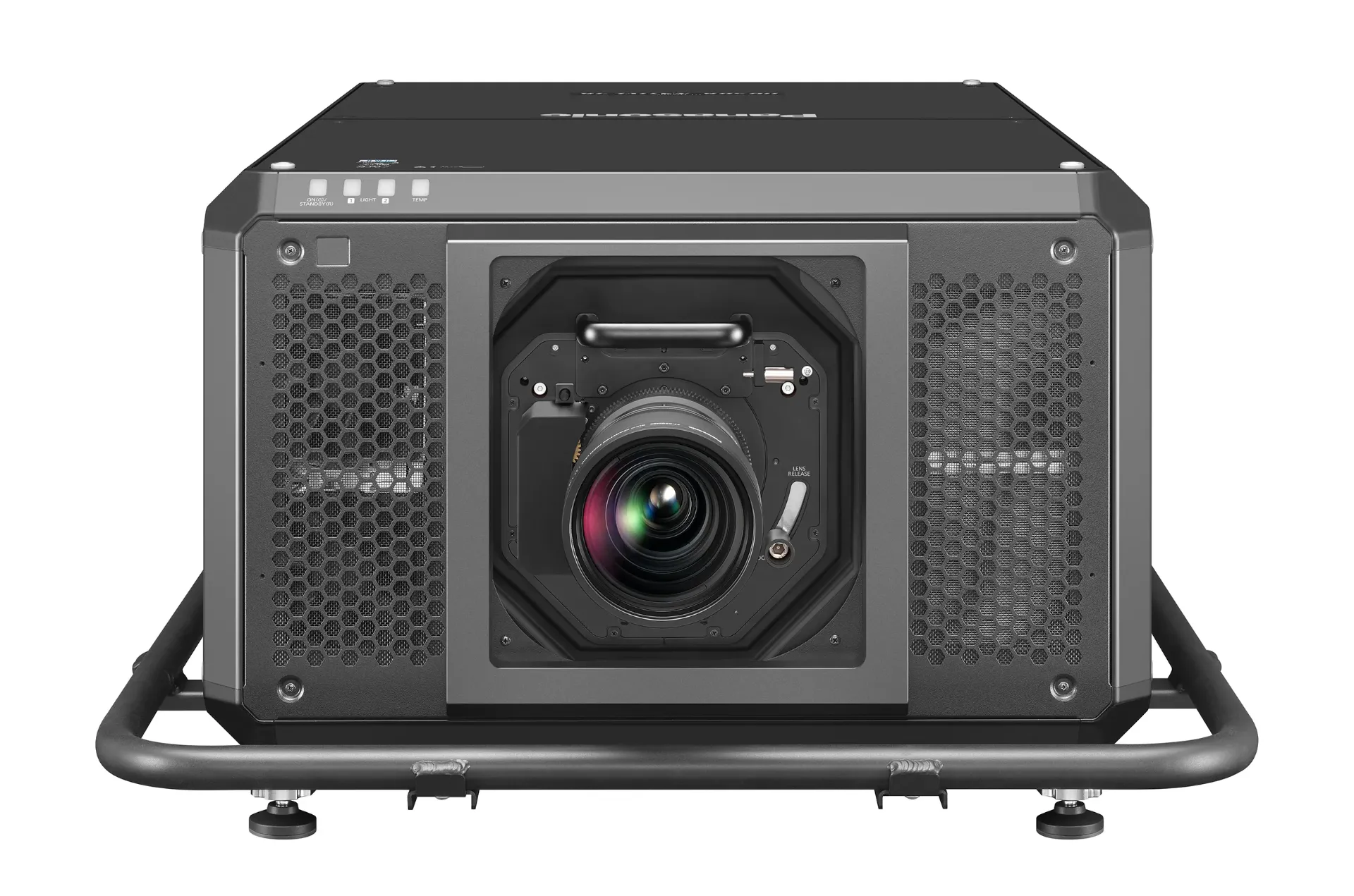

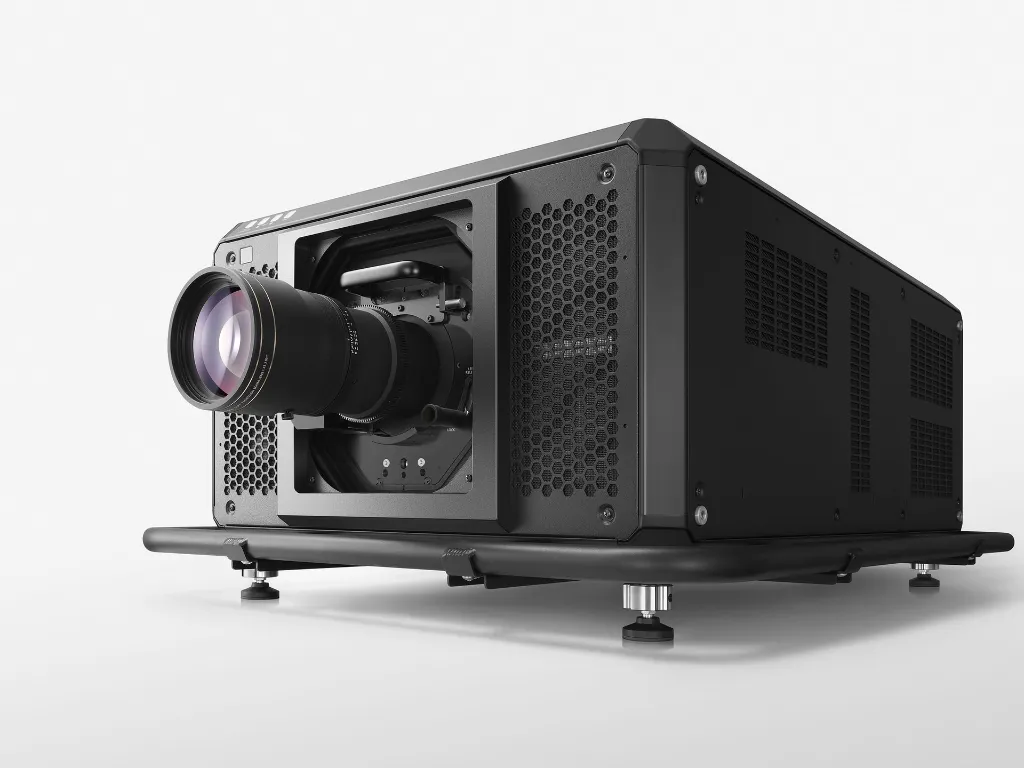

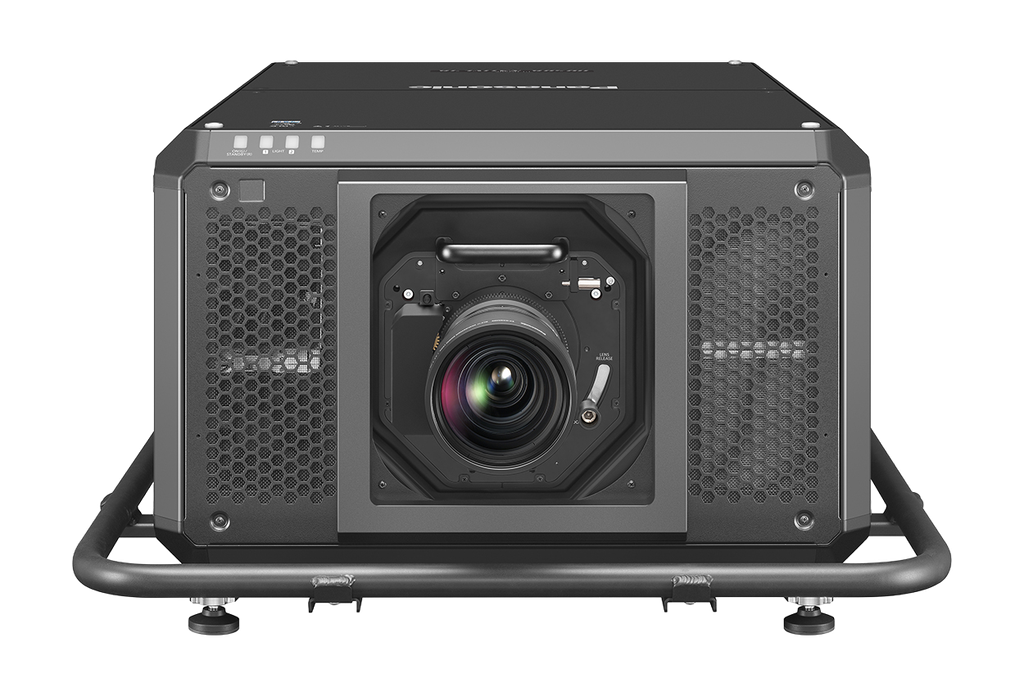

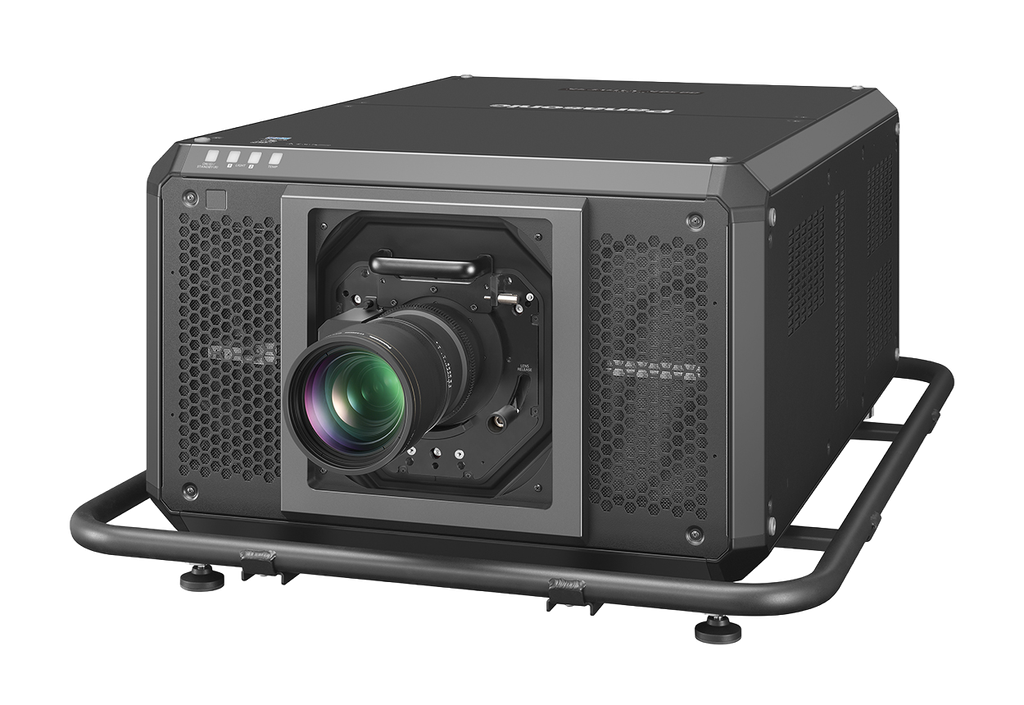

Panasonic PT-RQ50KEJ

The Panasonic PT-RQ50KEJ is a titan in the world of professional projection. It is the world’s most compact all-in-one 50,000-lumen laser projector with Native 4K resolution. Unlike the REQ/REZ series which are 1-Chip DLP units, this is a 3-Chip DLP powerhouse designed for arena concerts, stadium events, and massive outdoor building mapping where "good enough" isn't an option.

Model Configuration: PT-RQ50KEJ

• 3-Chip DLP: Uses three separate DMD chips for Red, Green, and Blue, providing significantly better color depth and brightness uniformity than 1-chip models.

• K (Series): Part of the ultra-high-brightness "K" series.

• EJ (Regional Code): Designated for the European, UK, and Oceania markets (200–240V for full output).

Key Features

• True Native 4K: Delivers a "real" 4K resolution of 4096 x 2160 pixels (DCI 4K) without using pixel-shifting. This results in surgical precision and clarity on screens up to 1,500 inches.

• Dual Blue + Red Laser Engine: This is a "Triple Laser" system. By adding a dedicated red laser to the two blue lasers, it achieves 114% of the color gamut of previous flagships, producing incredibly deep, natural reds and vibrant blues.

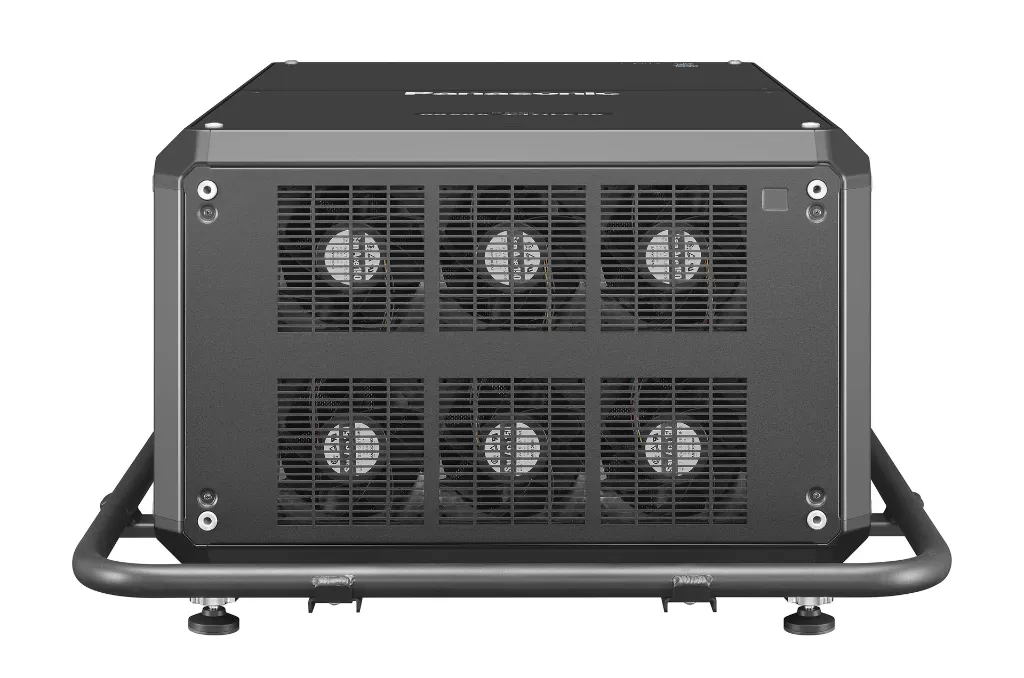

• All-in-One Compact Body: Despite its 50,000-lumen output, it does not require external chillers or bulky laser racks. The cooling system is entirely internal, making it much easier to transport and rig compared to competitors.

• Failover & Redundancy: Built for mission-critical shows. It features Dual Power Supplies and Failover Circuitry for the laser modules. If one diode fails, the rest stay lit with nearly zero visible brightness loss.

• Dual-Voltage Setup Mode: It can run on standard 100–120V power for setup and calibration (at 20% brightness), allowing tech teams to work before the high-voltage 200–240V power is live on-site.

• Remote Preview: Allows you to check the video signal on a laptop/web browser while the projector is still in Standby or the shutter is closed.

Specifications table
