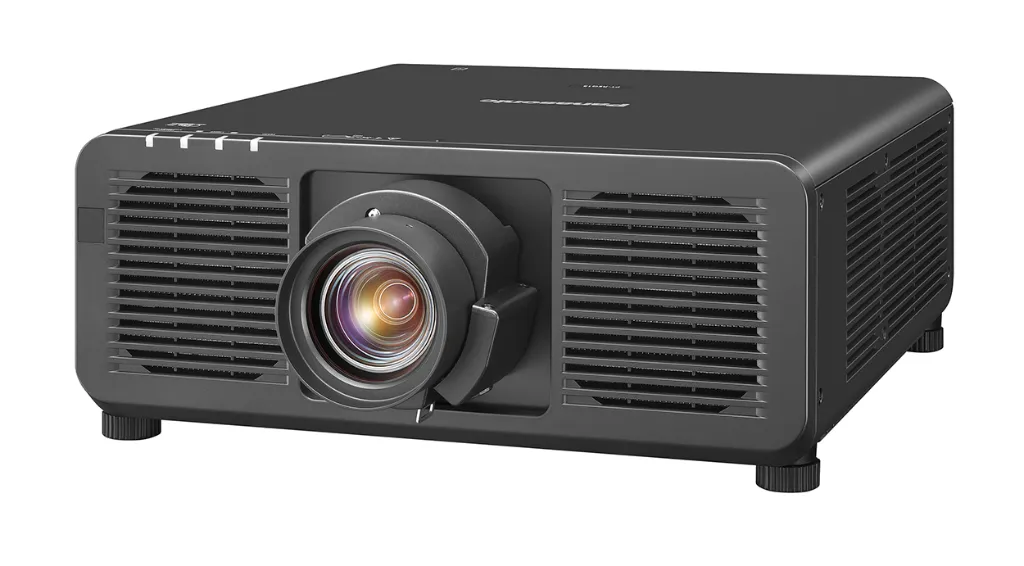

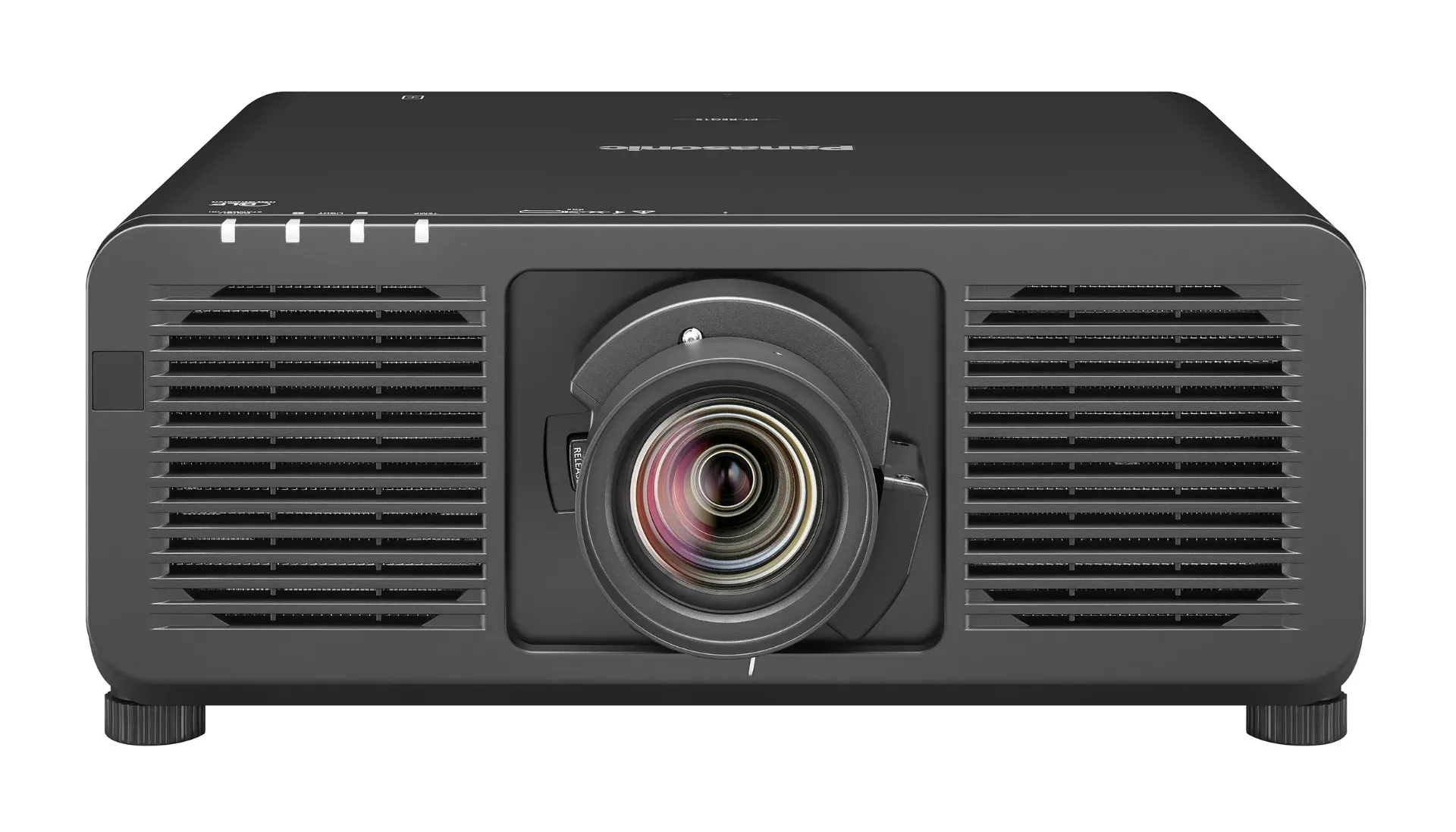

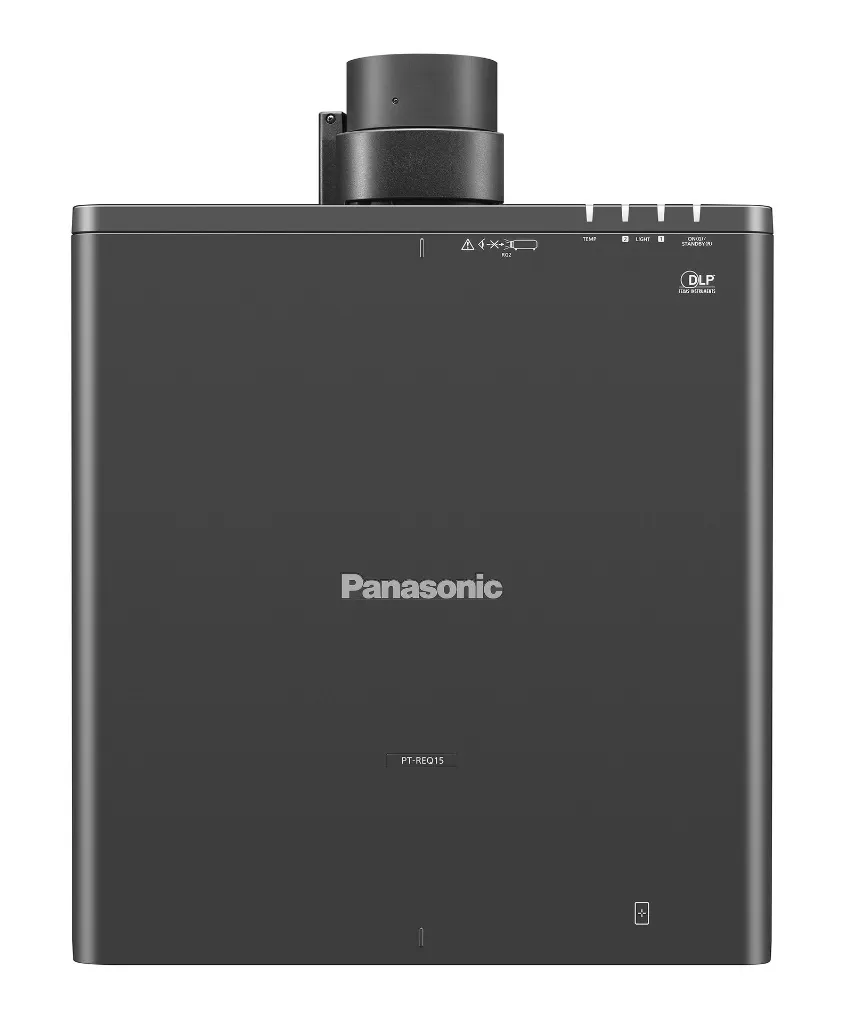

Panasonic PT-REQ15LBEJ

The Panasonic PT-REQ15LBEJ is the high-output powerhouse of the REQ series, designed to deliver breathtaking 15,000 lumens of brightness in a surprisingly compact 1-Chip DLP™ chassis. Purpose-built for high-end museum exhibitions, large-scale 360° projection mapping, and immersive entertainment venues, it provides the performance typically reserved for larger 3-Chip projectors while maintaining the ease of installation found in the 1-Chip category.

Model Configuration: PT-REQ15LBEJ

This specific model code represents the professional "Body Only" configuration:

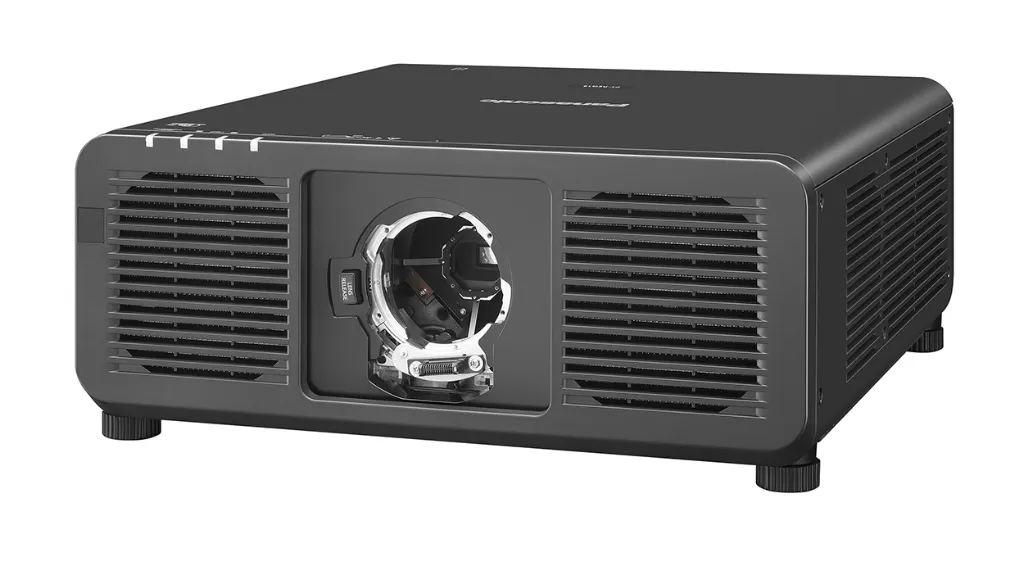

• L (Lensless): The unit ships without a lens, allowing you to select the precise optics (from the ET-C1 series) required for your specific throw distance and screen size.

• B (Black Cabinet): Finished in a Professional Black casing, making it ideal for theaters, dark-themed attractions, or staging where the projector should remain invisible to the audience.

• EJ (Regional Code): Designated for the European, UK, and Oceania markets, ensuring the correct power infrastructure and regional warranty support.

Key Features

• High-Brightness 4K Projection: Delivers 15,000 lumens (15,500 lumens Center) of 4K resolution (3840 x 2400) using Quad Pixel Drive technology. This ensures a seamless, grid-free image even when viewers are standing close to the screen.

• Smooth 240Hz Playback: Optimized for the gaming and eSports era, it supports 2K/240Hz content with an ultra-low latency of 6ms or less, providing fluid motion without motion blur.

• Optimized Power Efficiency: The refined optical engine allows the projector to reach its full 15,000-lumen output on standard AC 100–240 V power, eliminating the need for high-voltage electrical construction in most venues.

• Rich Color Enhancer: Includes a specialized red-channel expansion mode that significantly improves red-color reproduction, essential for accurately displaying artwork and high-end brand content.

• Filter-less Maintenance-Free Design: Features a hermetically sealed optical block and a sophisticated liquid cooling system that meets IP5X Dust Protected standards. This allows for 20,000 hours of operation without the need for air filter replacement.

• Intel® SDM-Ready: Features a slot for Intel® Smart Display Module (SDM) boards, allowing you to easily add 12G-SDI, NDI®, or AVoIP connectivity.

Specifications table
