Product Description

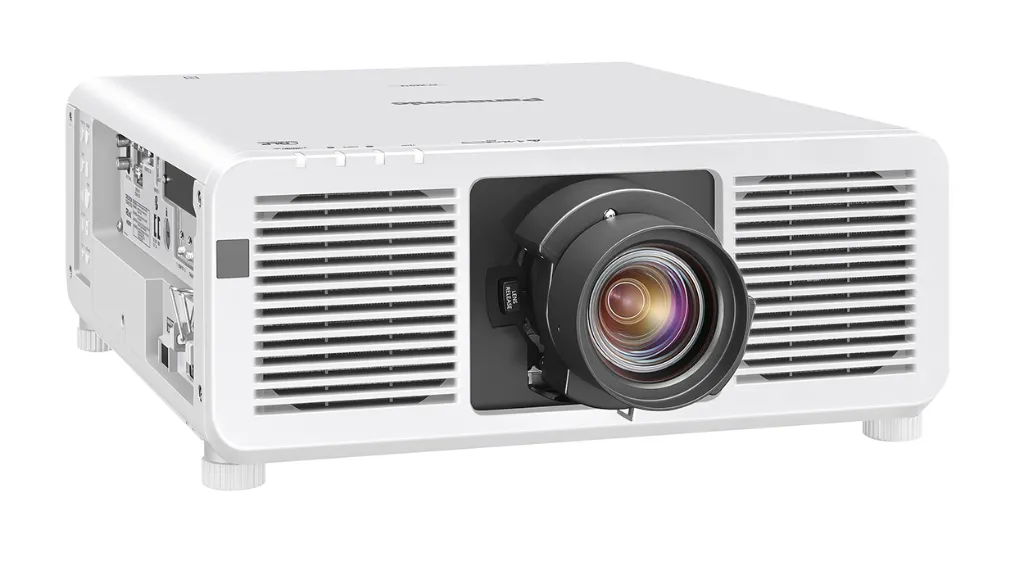

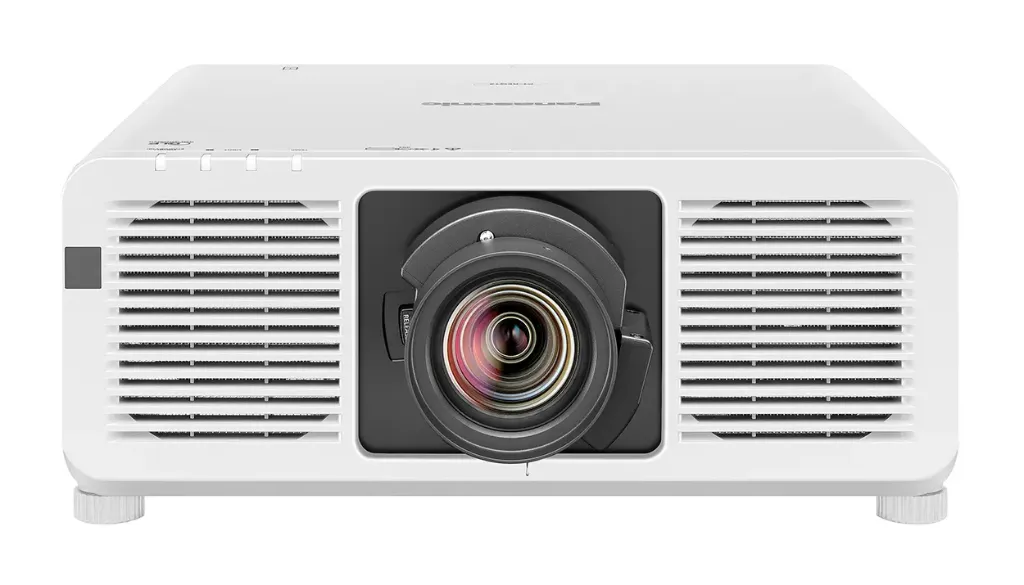

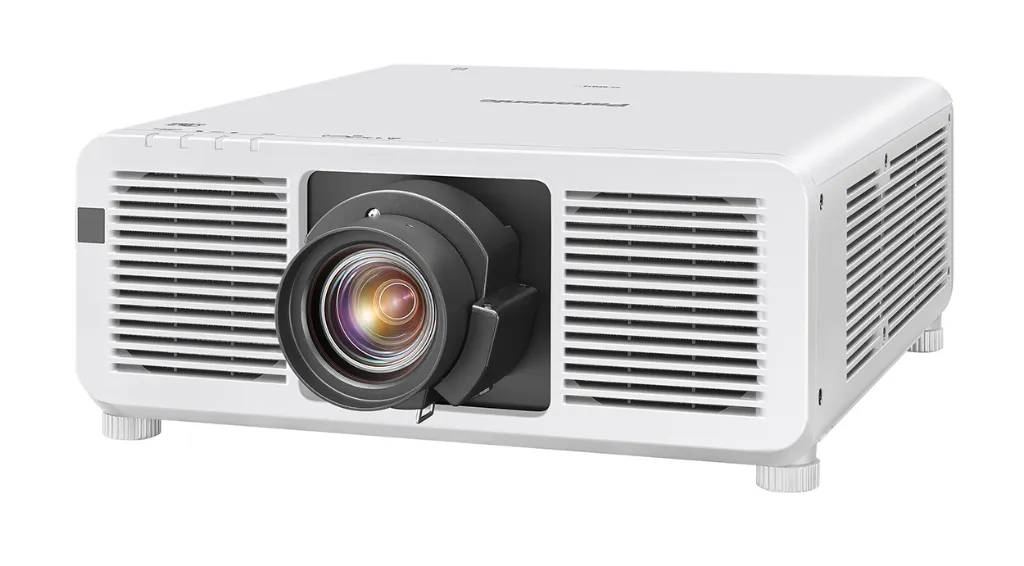

The PT-REQ12LWEJ sets a new standard for immersive visual experiences. By combining 12,000 lumens of high-brightness laser power with native-quality 4K resolution (3840 x 2400), it delivers incredibly smooth, grid-free images even when viewed from a close distance. Engineered for demanding 24/7 environments, it features a first-of-its-kind hermetically sealed, liquid-cooled optical engine that requires no air filters and no maintenance for up to 20,000 hours.
Core Performance Features
Evolved 4K Imaging: Powered by Quad Pixel Drive, it produces deep, dimensional 4K visuals with a high-speed 240 Hz refresh rate, ensuring zero motion blur in fast-action content or interactive applications.
Rich Color Enhancer: Optimized red-channel output delivers more vibrant and accurate color reproduction, which is essential for digital art and high-end cinema.
Maintenance-Free Reliability: The IP5X dust-protected optical block and refined liquid cooling system eliminate the need for filter replacements, significantly lowering the Total Cost of Ownership (TCO).
Smart Installation Tools: Includes an internal Gyroscopic Sensor to assist with physical alignment and NFC functionality for setting up network parameters via a smartphone even while the projector is powered off.
Technical Specifications
| Category | Item | Specification |
| Imaging | Technology | 1-Chip DLP™ (0.8" Panel) |
| Native Resolution | 1920 x 1200 (WUXGA) | |
| Max Resolution | 4K (3840 x 2400) (Quad Pixel Drive: ON) | |
| Brightness | 12,000 ANSI Lumens (12,400 Center Lumens) | |
| Contrast Ratio | 25,000:1 (Full On/Off, Dynamic Contrast: 3) | |
| Light Source | Type | SOLID SHINE Laser Diode |
| Service Life | 20,000h (Normal/Quiet) / 24,000h (Eco) | |
| Physical | Cabinet Color | White |
| Lens Status | Lensless / Body Only | |
| Weight | Approx. 27.0 kg (59.5 lbs) | |
| Dimensions (WxHxD) | 498 x 212 x 538 mm (19 19/32" x 8 11/32" x 21 3/16") | |
| Connectivity | Video Inputs | 2x HDMI (HDCP 2.3, 4K/60p), 1x DisplayPort (4K/60p) |
| Expansion Slot | Intel® SDM Compatible Slot (for SDI, AVoIP, etc.) | |
| Control & Network | RJ-45 (DIGITAL LINK/PJLink™), RS-232C, USB, NFC | |
| Environment | Noise Level | 38 dB (Normal/Eco) / 35 dB (Quiet) |
| Operating Temp | 0–45 °C (32–113 °F) |
