Product Description

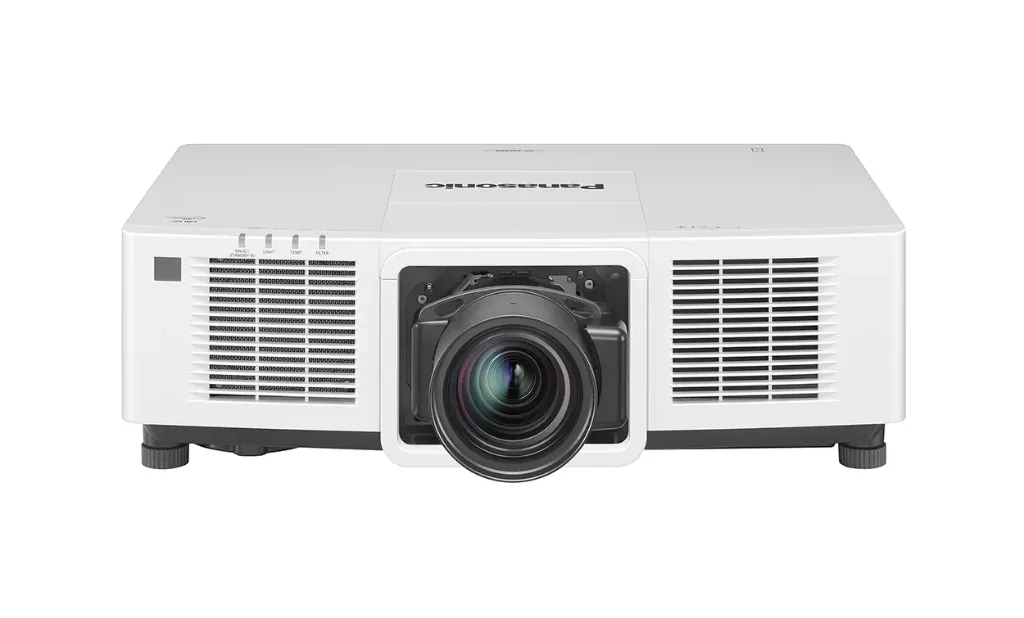

The PT-MZ11KLWEJ is designed for high-visibility projection in large spaces such as lecture halls, auditoriums, and corporate ballrooms. Featuring a White Cabinet and a Lensless design, it offers professionals the flexibility to choose the perfect optics for their specific throw distance. It is the first 11,000-lumen LCD projector capable of delivering full brightness on a standard 100–240V power outlet, making it incredibly versatile for existing infrastructures.
Core Performance Features
Pure White Generator: Developed by Panasonic Connect, this engine ensures rich color reproduction and high-color-stability even at 11,000 lumens of brightness.
Unmatched Reliability: Equipped with a Multi-Laser Drive Engine and Failover Circuitry. If one laser diode fails, the projector continues to operate with minimal brightness loss.
Silent Power: Despite its high output, it operates at a whisper-quiet 30 dB in Quiet Mode, ensuring the audience remains focused on the content.
Liquid Cooling & Dustproof Structure: Inherited from Panasonic's high-end DLP models, the liquid-cooling system and hermetically sealed optical block provide 20,000 hours of maintenance-free operation in harsh environments.
Technical Specifications
| Category | Feature | Verified Specification |
| Image | Brightness | 11,000 ANSI Lumens (7,700 in Quiet Mode) |
| Native Resolution | WUXGA (1920 x 1200) | |
| Contrast Ratio | 3,000,000:1 (Dynamic Contrast NX) | |
| Technology | 3-Chip LCD (1.0-inch Panels) | |
| Light Source | Type | SOLID SHINE Laser Diode |
| Lifespan | 20,000 Hours (Normal/Quiet) | |
| Lens | Lens Status | Lensless (Optional ET-EM Series required) |
| Lens Shift | Vertical: ±60% | Horizontal: ±20% (Powered) | |

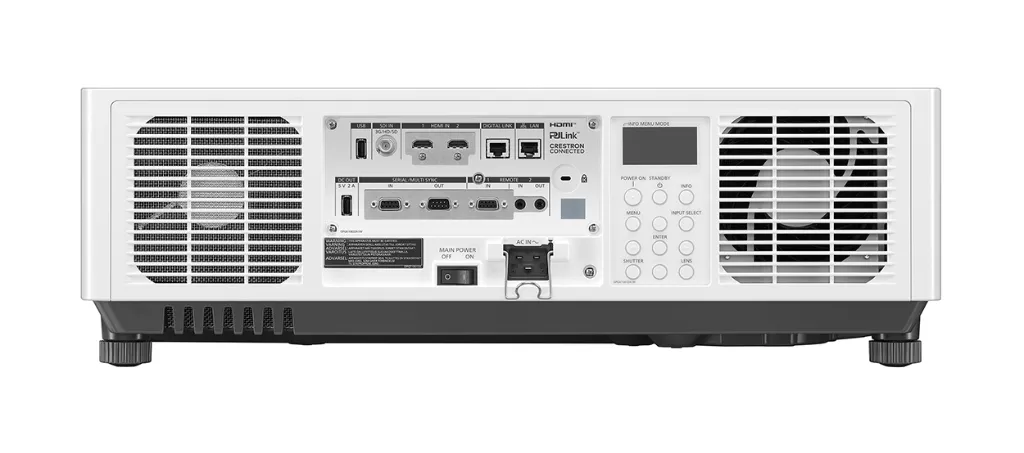

| Connectivity | Video Inputs | 2x HDMI (4K/60p), 1x 3G-SDI, 1x DIGITAL LINK |
| Network | RJ-45 (LAN), PJLink™, Art-Net compatible | |
| Expansion | USB Type-A (for Wireless Module / Memory) | |
| Physical | Cabinet Color | White |
| Weight | Approx. 22.5 kg (Body Only) | |
| Dimensions | 650 x 211 x 440 mm (with feet at shortest) | |
| Noise Level | 35 dB (Normal) / 30 dB (Quiet) | |
| Reliability | Failover | Backup Input Switching (0.3s switch-over) |
| Cooling | Liquid-cooled, filterless design |
