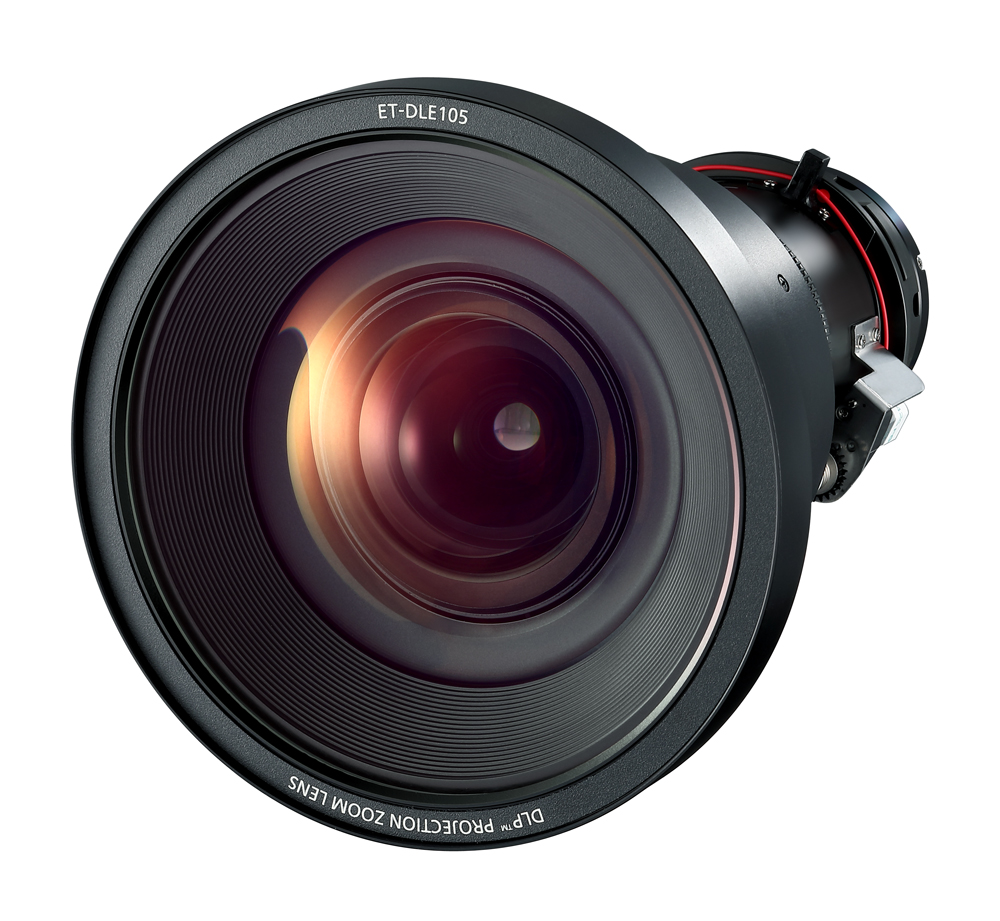

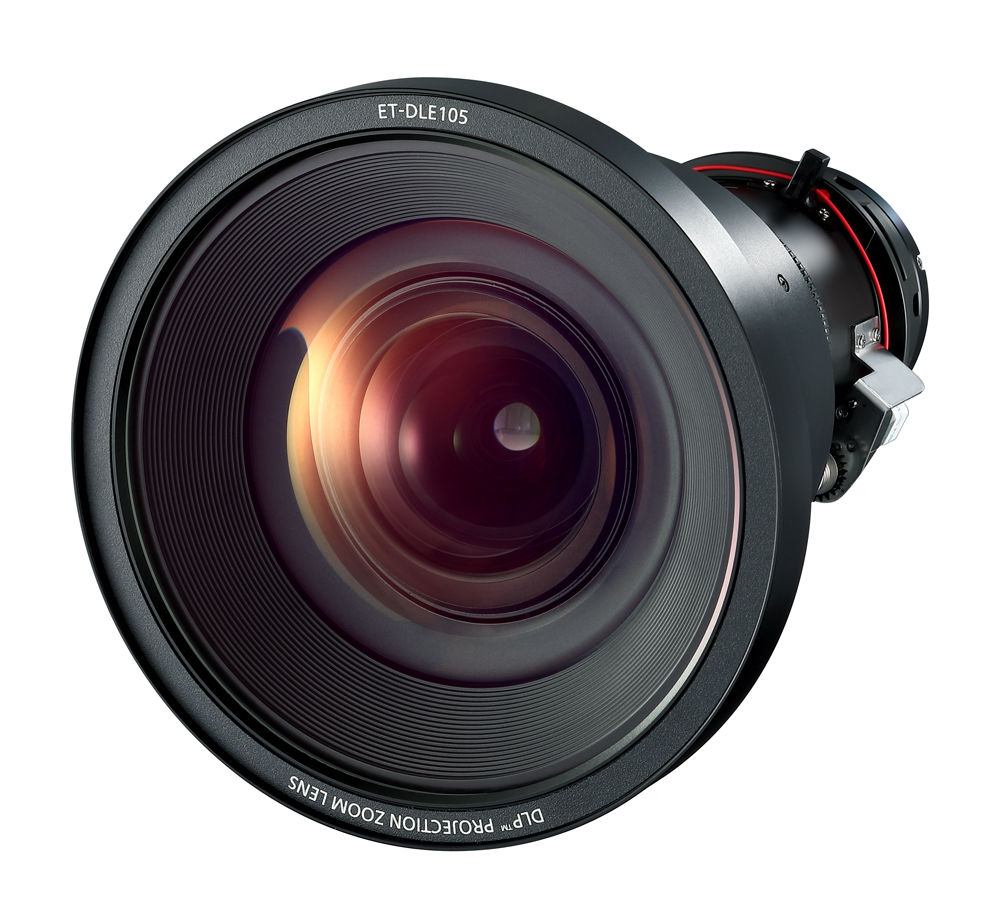

The ET-DLE105 is engineered to deliver high-resolution imagery in spaces where a standard lens is too long but a dedicated short-throw lens is too wide. It features a 1.3x motorized zoom, allowing for precise frame fitting from mid-range distances.
Designed to support the high-density pixels of 4K and WUXGA laser projectors, the lens utilizes high-refractive index glass to minimize chromatic aberration and maintain center-to-edge brightness. Its "straight" optical path ensures easy integration with standard mounting hardware and specialized enclosures.
| Lens type | Zoom Lens |
|---|---|
| F-number | 1.85–2.35 |
| Focal length (f) | 14.7–19.7 mm |
| Throw ratio -> WUXGA | 0.978-1.32:1 |
| Throw ratio -> WXGA | 1.02-1.39:1 |
| Throw ratio -> XGA | 1.01-1.37:1 |
| Dimensions(WxHxD) | 140 × 140 × 210 mm (5-1/2 × 5-1/2 × 8-9/32") |
| Weight [kg] | 1.2 kg (2.6 lbs) |
