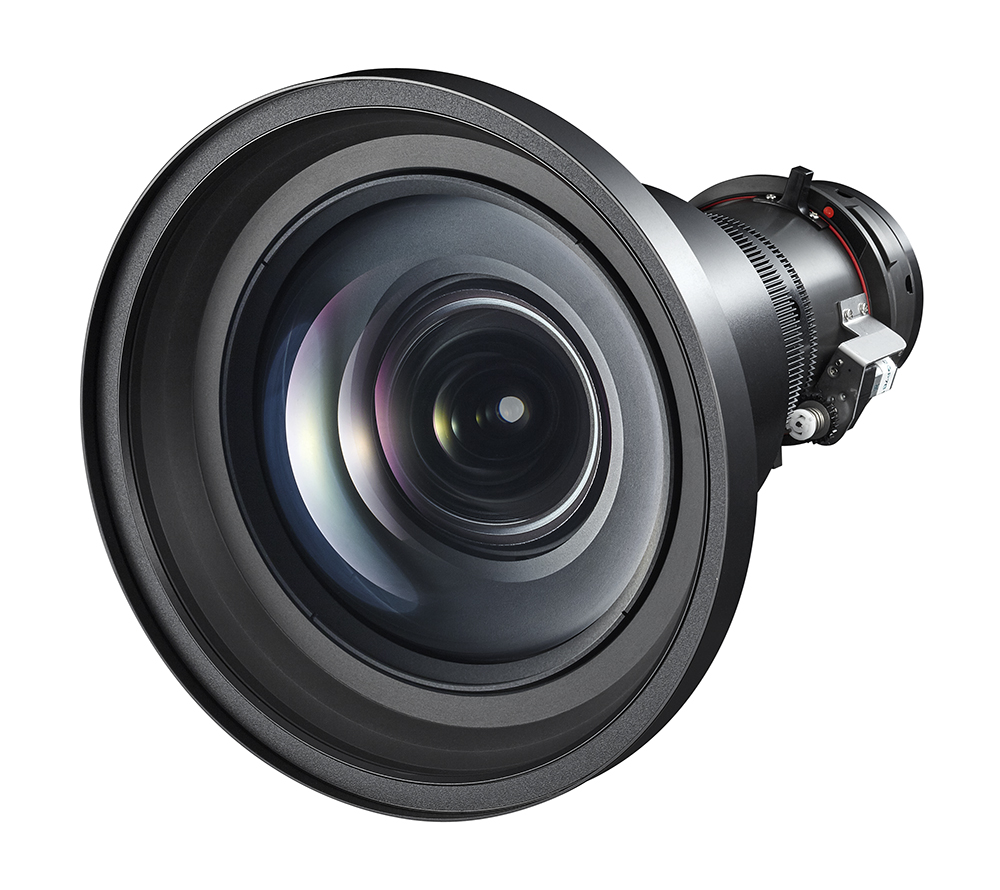

The ET-DLE060 is designed to deliver large-scale, high-contrast imagery from remarkably short distances. Unlike fixed lenses in this category, it features a 1.35x motorized zoom, allowing for "post-rigging" image adjustments that significantly simplify installation in challenging environments.
Its optical path is optimized for high-brightness laser sources, ensuring edge-to-edge 4K resolution support with minimal chromatic aberration. It is a "straight-on" lens (non-mirror), which maintains a traditional projector orientation while providing ultra-wide coverage.
| Lens type | Zoom Lens |
|---|---|
| F-number | 1.85–2.34 |
| Focal length (f) | 9.16–12.1 mm (3/8 - 15/32") |
| Throw ratio -> WUXGA | 0.600-0.801:1 |
| Throw ratio -> WXGA | 0.631-0.843:1 |
| Throw ratio -> XGA | 0.620-0.829:1 |
| Dimensions(WxHxD) | 172 × 172 × 225 mm (6-25/32 × 6-25/32 × 8-27/32”) |
| Weight [kg] | 1.3 kg (2.9 lbs) |
