Product Description

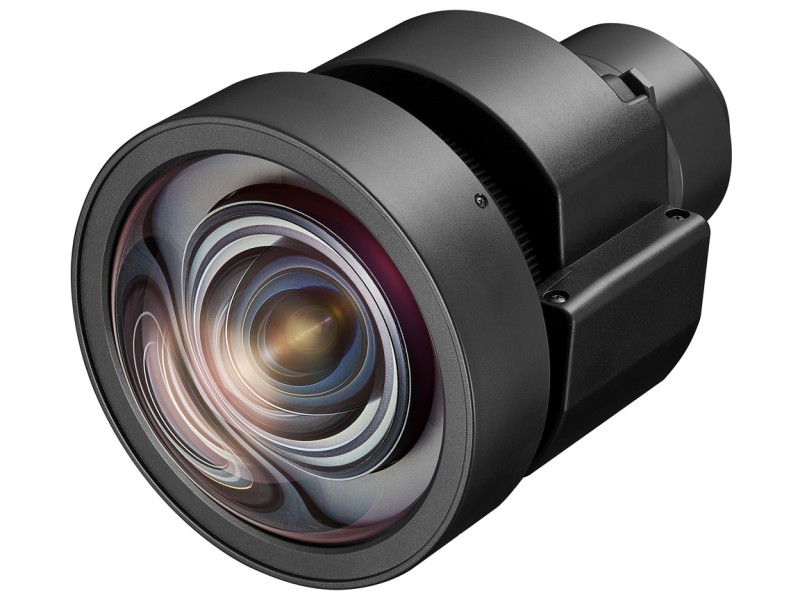

The ET-C1W300 is the "Ultra Wide" version of the C1 lens series. In your Odoo hierarchy, it sits in the same Video / Projection / Lens category as the others, but it is a higher-value asset because it allows for the shortest throw distance in the zoom lineup.
While the W400 ($0.68:1$) and W500 ($0.94:1$) are great for standard rooms, the W300 ($0.55:1$) is designed for immersive spaces, like wrap-around projection tunnels or small galleries where the projector is almost touching the wall.
Lens type Zoom Lens F-number 1.9–2.3 Focal length (f) 9.9–12.3 mm (25/64"–31/64") Screen size 70–1000 inches Throw ratio -> WUXGA 0.550–0.690:1 Auto Lens Identification function Compatible models PT-REQ15/REQ12/REQ10/REQ80/
PT-REZ15/REZ12/REZ10/REZ80Lens-shift -> Vertical *1 ±50 % Lens-shift -> Horizontal *1 ±23 % Zoom x1.25 Dimensions -> (W) Approx. 154 mm
(6 1/16")Dimensions -> (H) Approx. 155 mm
(6 3/32")Dimensions -> (D) Approx. 245 mm
(9 21/32")Weight [kg] Approx. 2.6 kg (5.7 lbs) Applicable projectors *2 PT-REQ15/REQ12/REQ10/REQ80//PT-REZ15/REZ12/REZ10/REZ80 Dimensions(WxHxD) 154 × 155 × 245 mm (6-1/16 × 6-3/32 × 9-21/32")
