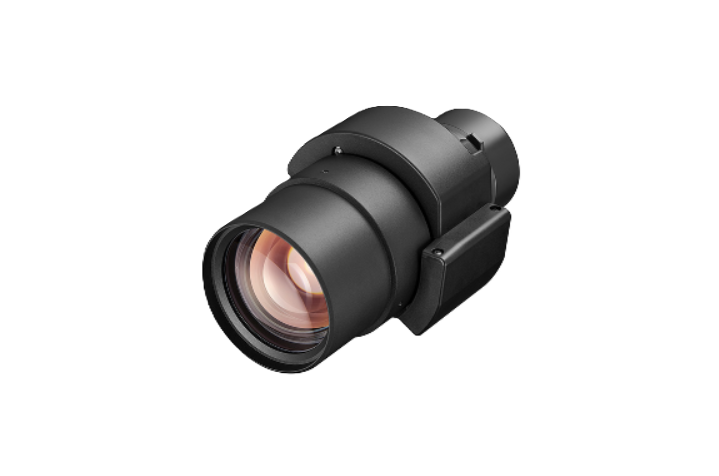

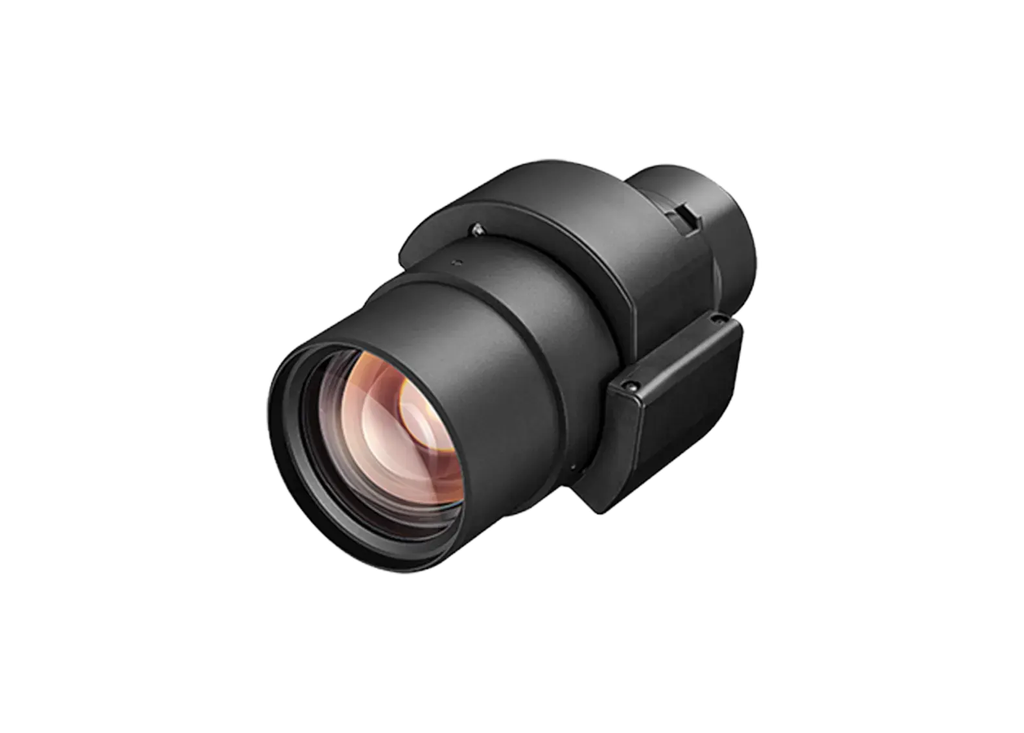

Product Description
| Lens type | Zoom Lens |
|---|---|
| F-number | 1.9–2.4 |
| Focal length (f) | 36.1–59.6 mm (1 27/64"–2 11/32") |
| Screen size | 70–1000 inches |
| Throw ratio → WUXGA | 2.07–3.38:1 |
| Auto Lens Identification function Compatible models |
PT-REQ15/REQ12/REQ10/REQ80/ PT-REZ15/REZ12/REZ10/REZ80 |
| Lens-shift → Vertical | ±60 % |
| Lens-shift → Horizontal | ±29 % |
| Zoom | x1.63 |
| Dimensions (W) | Approx. 135 mm (5 5/16") |
| Dimensions (H) | Approx. 148 mm (5 13/16") |
| Dimensions (D) | Approx. 253 mm (9 31/32") |
| Weight | Approx. 2.4 kg (5.3 lbs) |
| Applicable projectors | PT-REQ15/REQ12/REQ10/REQ80/ PT-REZ15/REZ12/REZ10/REZ80 |
| Dimensions (WxHxD) | 135 × 148 × 253 mm (5-5/16 × 5-13/16 × 9-31/32") |
