Product Description

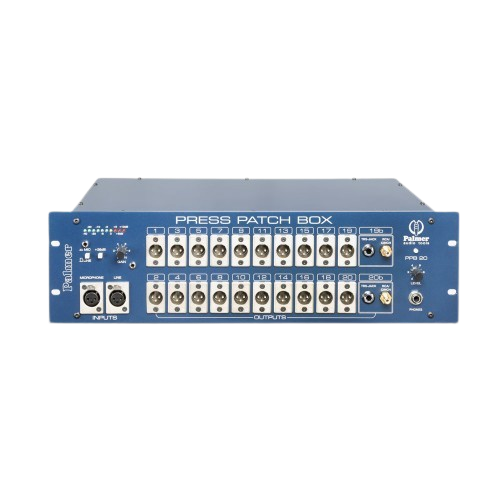

Press Patch Box 20-Channel
Signal distributor with 20 outputs
Isolated transformer-balanced XLR inputs for microphone and line level signals
High-quality input amplifier with gain control and +20 dB switch
10 LEDs for level display from -40 to +10 dB
20 transformer-balanced XLR outputs with paired driver circuitry and individual ground lift switches on the rear
2 additional 6.35mm stereo jacks and RCA outputs
Nominal output Level +4 dBu/600 Ohms, jack and RCA outputs -10 dBu
Adjustable 6.35 mm headphone output
Summed input and cascaded output
Integrated shielded power supply
DC input for emergency power supply
