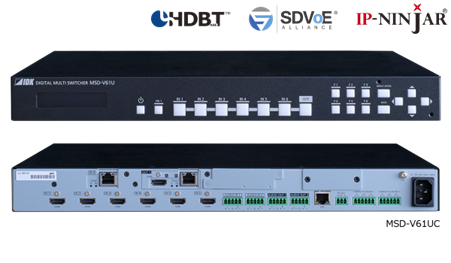

4K@60 Digital Multi Switcher with 6 Inputs and 1 Output, (HDMI / SDVoE Output CAT model)
Features
■ 6 inputs and 1 output
■ Up to 4K@60 (4:4:4)
■ HDCP 1.4/2.2
■ Embedding/De-embedding Dante audio
■ Picture-in-Picture (2-window)
■ Control external device
■ SDVoE/HDBaseT direct input option
Comparison Table
Optional
Model Number |
Digital input |
SDVoE input |
HDBaseT input |
HDMI output |
SDVoE output |
HDBaseT output |
| MSD-V61UF | 6 | 1 | 0 | 1 | 1 | 0 |
| MSD-V61UC | 6 | 1 | 0 | 1 | 1 | 0 |
| MSD-V61UT | 6 | 0 | 1 | 1 | 0 | 1 |
Category |
Model Number |
Description |
| SDVoE/HDBaseT Input Option | MSD-VIV1UF | SDVoE Modular Input Fiber model |
| MSD-VIV1UC | SDVoE Modular Input CAT model | |
| MSD-VIV1UT | HDBaseT Modular Input | |
| Dante Audio Option | MSD-VAB4D | Built-in Dante Unit with 4 Inputs and 4 Outputs |
| SFP+ Optical Transceiver | SFP-L10GSR | SFP+ transceiver: Multimode fiber |
| SFP-L10GLR | SFP+ transceiver: Singlemode fiber |
